NOTE
|
|
For Macintosh users
This section describes the procedure for Windows as an example.
For details on the procedure for Macintosh, see "Driver Guide." For details on the procedure for displaying "Driver Guide", see "Viewing the Driver Guide." |
|
ON
|
To <Question 2>
|
|
OFF
|
Turn the printer ON.
|
|
Cannot be turned ON
|
|
The
 Ready indicator is on. |
To <Question 3>
|
|
The
Ready indicator is blinking. |
The printer is warming up. Please wait a moment.
|
|
The
 Message indicator is on. |
|
|
The
 Job indicator is on. |
The printer is operating. Please wait a moment.
If the printer does not perform printing for a while, perform the print data output or soft reset. |
|
The
Job indicator is blinking. |
|
|
The Paper Source indicator is blinking.
|
Load paper.
|
Online indicator.
|
The
Online indicator is on. |
To <Question 4>
|
|
The
Online indicator is off. |
The printer is offline.
Place it online. |
|
Printable
|
To <Question 5>
|
|
Not printable
|
If an error message is displayed, solve the problem following the message.
|
|
Connected
|
To <Question 6>
|
|
Unconnected
|
Connect the cable properly.
|
|
The ACT indicator is on.
|
To <Question 7>
|
|
The LNK indicator is on.
|
|
|
All the indicators are off.
|
|
[Network] is set to [On].
|
To <Question 8>
|
|
[Network] is set to [Off].
|
Set it to [On].
|
|
Printable
|
There is no problem with the printer and driver.
Check the printing preferences in the application.
|
|
Not printable
|
To <Question 9>
|
|
TCP/IP
|
To <Question 10>
|
|
NetWare or SMB
|
To <Question 14>
|
|
AppleTalk
|
To <Question 17>
|
|

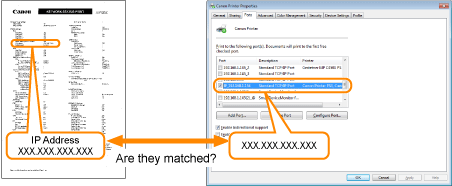

Yes, they are matched.
|
To <Question 11>
|
|
No, they are not matched.
|
Configure the printer to a static IP address.
|
|

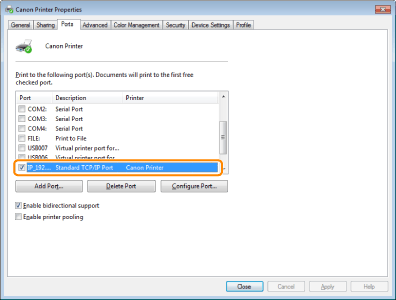

Selected
|
To <Question 12>
|
|
Not selected
|
Select the correct port.
|
|
The port to be used cannot be found.
|
Create a port.
|
|
The IP address was changed.
|
"Restricting the Users Who Can Print or Perform the Printer Settings" "Restricting the Users Who Can Access"
|
NetWare or SMB is set properly.
|
Try the following point.
Set [Network Delay Time] longer than usual.
If printing does not work, proceed to <Question 15>.
|
|
NetWare or SMB is not set properly.
|
Set NetWare or SMB properly.
|
|
The IP address is set properly.
|
To <Question 16>.
|
|
The IP address is not set properly.
|
Set the IP address properly.
|
|
The port is selected correctly.
|
To <Question 19>.
|
|
The port is not selected properly.
Or The settings for NetWare or SMB are changed. |
Create the appropriate port.
|
|
Set
|
To <Question 18>
|
|
Not set
|
Set AppleTalk properly.
|
|
Set
|
To <Question 19>
|
|
Not set
|
Set them properly.
|
|
*
|
This is a LAN cable which is used to connect a printer and computer directly without a hub (LAN network).
|
|
Printable
|
Make resident software invalid including security software.
|
|
Not printable
|
Contact your local authorized Canon dealer.
|
