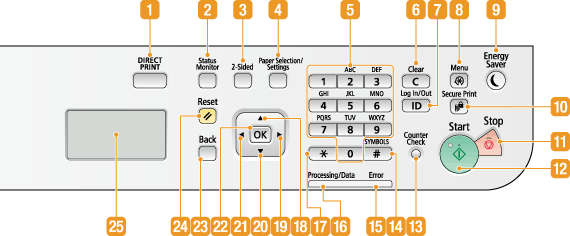

      Operation Panel
      [DIRECT PRINT] key
      Press to activate the USB Print function. Display
      [Status Monitor] key
      Press to check the status of printing, to view the usage history, or to view the network settings such as the IP address of the machine. You can also check the status of the machine, such as the remaining amounts of paper and toner, or whether any errors occurred. Display
      [2-Sided] key
      Press to specify the 2-sided setting for the USB Print function.
      [Paper Selection/Settings] key
      Press to select the paper you want to use, or to set the size and type of paper loaded in the paper source. Specifying Paper Size and Type
      Numeric keys ([0]-[9] keys)
      Press to enter numbers and text. Entering Text
      [Clear] key
      Press to delete the entered numbers and text.
      [ID] key
      Press the key after entering your logon information such as an ID and PIN. After you finish using the machine, press the key again to log out. Logging on to the Machine
      [Menu] key
      Press to start specifying many of the settings for the machine, such as <Timer Settings> or <Preferences>. Setting Menu List
      [Energy Saver] key
      Press to put the machine into sleep mode. The key lights up yellow green when the machine is in sleep mode. Press the key again to exit sleep mode. Entering Sleep Mode
      [Secure Print] key
      Press when you start printing secured documents. To print a secured document, press the key, select the secured document to print and enter the PIN that has been set on the computer. Printing a Document Secured by a PIN (Secure Print)
      [Stop] key
      Press to cancel printing.
      [Start] key
      Press to start printing files from a USB memory device.
      [Counter Check] key
      Press to view the counter value as well as the list of the equipment that is attached or enabled. Viewing the Counter Value   Display
      [#] key
      Press to enter symbols such as "@" or "/".
      [Error] indicator
      Blinks or lights up when an error such as a paper jam occurs.
      [Processing/Data] indicator
      Blinks while operations such as printing is being performed. Lights up when there are documents waiting to be processed.
      [*] key
      Press to switch the type of text that is entered.
      [] key
      When specifying settings, press to select the item above the currently selected item.
      When changing setting values, press to increase a value.
      [] key
      When specifying settings, press to proceed to the next screen.
      When entering text, press to move the cursor to the right.
      Press to increase a setting value such as brightness of the display, etc.
      [] key
      When specifying settings, press to select the item below the currently selected item.
      When changing setting values, press to decrease a value.
      [] key
      When specifying settings, press to return to the previous screen.
      When entering text, press to move the cursor to the left.
      Press to decrease a setting value such as brightness of the display, etc.
      [OK] key
      Press to apply settings or specified details.
      [Back] key
      Press to return to the previous screen. If you press the key when specifying settings, for example, the settings are not applied and the display returns to the previous screen.
      [Reset] key
      Press to cancel the settings and restore the previously specified settings.
      Display
      Displays the operation and status screens for the USB Print function, as well as the status of the machine and error information. Also, view the screen when specifying the settings of the machine. Display
