1-sided and 2-sided Printing

You can select whether to print on one side or both sides of each sheet of paper.

Paper Type	Paper Size
Plain paper (16.0 to 23.9 lb Bond (60 to 90 g/m²)) Heavy paper (24.0 lb Bond to 44.4 lb Cover (91 to 120 g/m²))	Standard size paper A4, Legal, Letter and Foolscap Custom size paper: 8.27 to 8.50 in. (210.0 to 215.9 mm) wide and 11.00 to 14.00 in. (279.4 to 355.6 mm) long

Before performing 2-sided printing, see "Attention (1-sided Printing and 2-sided Printing)."

IMPORTANT

Precautions when performing 2-sided printing

Do not touch the paper during 2-sided printing until it is completely output. The paper is first partially output after the front side is printed, and then it is fed again to be printed on the back side.

Be sure to close the output selection cover before performing 2-sided printing.

"Paper Loading and Output"

Printing on the back side of paper whose front side is already printed

This printer enables you to perform 2-sided printing by manually inserting the back side of the paper* whose front side was previously printed even if the paper cannot be used for 2-sided printing.

When printing on the back side of paper whose front side was previously printed, flatten out any curled paper and load one sheet of paper at a time in the multi-purpose tray.

*	This is only for paper that has been printed using this printer. Also, you cannot print again on the same side of the paper that was printed before.

Select [Print] from the [File] menu of the application.

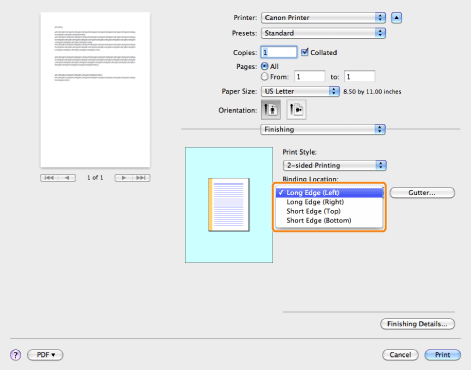

Select your printer from [Printer] → [Finishing] → Select [1-sided Printing] or [2-sided Printing] from [Print Style].

NOTE
The default setting for [Print Style] is [2-sided printing]. You can save the 1-sided printing setting as a preset. For details, see "Using [Presets] for Printing."

Select the binding edge from [Binding Location].

The output image is displayed in the preview area.

If you want to set the gutter width, click [Gutter].

If you do not set the gutter width, skip to step 6.

Specify the gutter width → click [OK].

Click [Print].

NOTE
The screen may vary according to the operating system, as well as the type and version of the printer driver.
