Setting the Print Position
You can set the print position for JPEG and TIFF files to the center or top left of the page when printing.
As an example, the procedure for printing files that are stored in the Advanced Box is explained in this section.
IMPORTANT
This mode is only available for printing files stored in the Advanced Box, the Advanced Box of another imageRUNNER ADVANCE machine on the network, or memory media.
You can use this mode only when printing JPEG or TIFF files.
1.
Press [Access Stored Files] → [Advanced Box].
2.
Select the desired storage space → select the directory where the file you want to print is stored.
3.
Select the desired file → press [Print].
4.
Select the paper source → press [OK].
5.

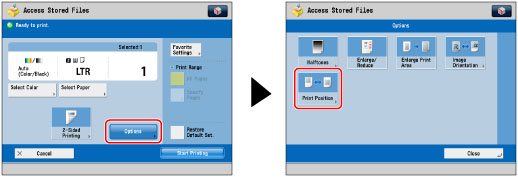

Press [Options] → [Print Position].
To change the paper source, see "Paper Selection."
6.
Select the desired print position→ press [OK] → [Close].
[Auto]:
If a print position is specified for the image data, it is printed as specified.
If no print position is specified, the image is printed in the center.
[Always Center]:
The image is printed in the center, even if another print position is specified.
[Always Top Left]:
The image is printed in the top left corner, even if another print position is specified.
IMPORTANT
For information on the modes which cannot be set in combination with this mode, see "Unavailable Combination of Functions."
