Locations of Paper Jams
07SE-0H1

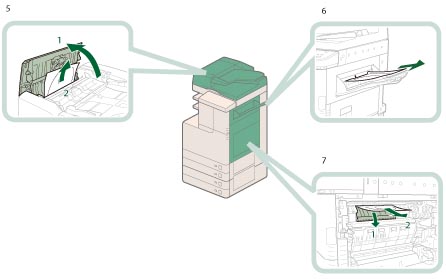

Paper jams may occur in the following parts of the machine. See the applicable section to clear the paper jam.
1.
Main Unit
2.
Inside the Fixing Unit
3.
Paper Drawer 1/Paper Drawer 2
4.
Cassette Feeding Unit-AF1 (Optional)

5.
Feeder
6.
Copy Tray-J1 (Optional)
7.
Inner Finisher-F1 (Optional)

Staple Finisher-M1/Booklet Finisher-M1 (Optional)
8.
Inside the Top Cover of the Finisher
9.
Buffer Pass Unit-K1
Booklet Finisher-M1 (Optional)
10.
Inside the Front Cover
11.
Saddle Stitcher Unit

12.
Inner 2Way Tray-F1 (Optional)
