Screen Layout of the Remote UI
07K4-0LX

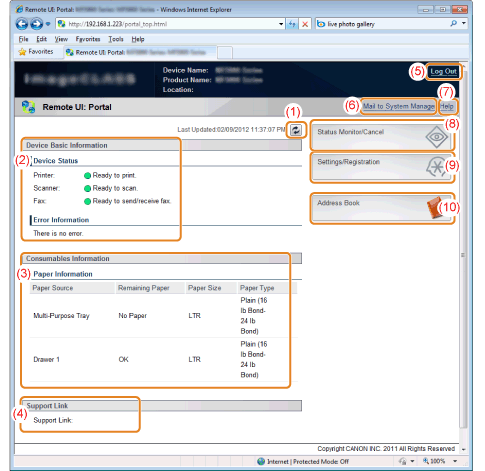

Portal Page
(1)
Refresh the currently displayed page.
(2)
Display the current status and error information of the machine.
When the error occurs, the link to the error information is displayed.
(3)
Display the names of paper feeding parts and the paper information.
(4)
Display the support link specified on [Settings/Registration] page.
(5)
Display the Remote UI top page (log-in screen) when the machine is in log-out status.
(6)
Create an E-mail to the system manager specified in [System Manager Information].
(7)
Display Help for the currently displayed page in a separate window.
(8)
Display the current job status and history, etc.
(9)
Display the settings/registration items of the machine.
(10)
Display the coded dial codes and one-touch keys registered in the address book.
[Status Monitor/Cancel] Page
(1)
Display the list of device settings.
(2)
Display the portal page of Remote UI.
(3)
Display the hierarchy of the currently displayed page.
(4)
Refresh the currently displayed page.
(5)
Move the scroll box up to the top of the page.
[Settings/Registration] Page
(1)
Display the list of device settings.
(2)
Display the portal page of Remote UI.
(3)
Display the hierarchy of the currently displayed page. By clicking this, the relevant page is displayed.
(4)
Move the scroll box up to the top of the page.
NOTE
About the change of System Management Settings
You can only view [System Settings] if you log on in End-User Mode.
You can change the settings if you log on in Management Mode.

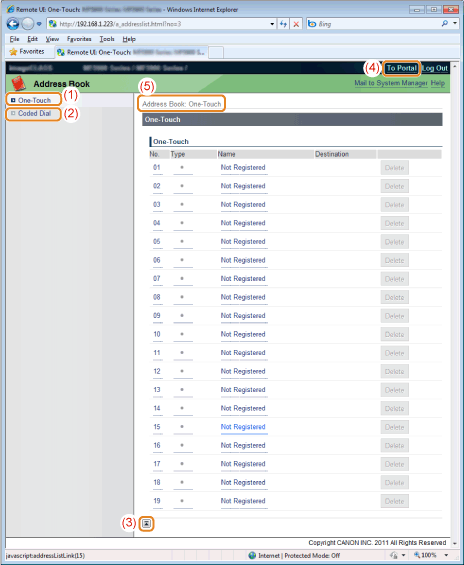

[Address Book] Page
(1)
Display the list of one-touch keys.
(2)
Display the list of coded dial codes.
(3)
Move the scroll box up to the top of the page.
(4)
Display the portal page of Remote UI.
(5)
Display the hierarchy of the currently displayed page. By clicking this, the relevant page is displayed.
(6)
Display the address of the number selected by [List Number] (for [Coded Dial] page only).
NOTE
About the change of Address Book
You can change the address book only if you log on in Management Mode.
