Selecting the Connection Method (LPD/RAW/WSD)

07K4-0HF

Select one of the following printing methods over a TCP/IP network.

LPD

RAW

WSD

Start the Remote UI and log on in system manager mode.

Click [Settings/Registration].

Click [Network Settings] -> [TCP/IP Settings].

Configure the protocol settings.

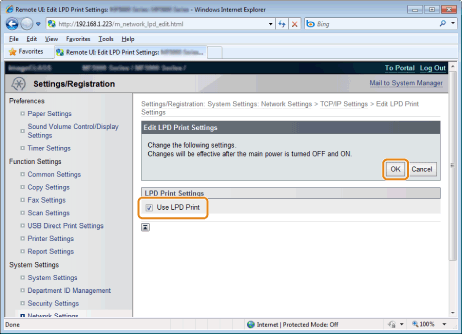

To set up LPD printing

(1)	Click [Edit] in [LPD Print Settings].
(2)	When using LPD printing Select the [Use LPD Print] check box. When not using LPD printing Clear the [Use LPD Print] check box.
(3)	Click [OK].
(4)	Proceed to Step 5 .

To set up RAW printing

(1)	Click [Edit] in [RAW Print Settings].
(2)	When using RAW printing Select the [Use RAW Print] check box. When not using RAW printing Clear the [Use RAW Print] check box.
(3)	Click [OK].
(4)	Proceed to Step 5 .

To set up WSD Printing

(1)	Click [Edit] in [WSD Settings].
(2)	When Use WSD Printing Select the [Use WSD Printing] check box. When Not Using WSD Printing Clear the [Use WSD Printing] check box.
(3)	Select the [Use WSD Browsing] check box to obtain information about the machine using the WSD port. (Once the [Use WSD Printing] check box is selected, it cannot be cleared.)
(4)	When Use WSD Scanning Select the [Use WSD Scanning] check box. When Not Using WSD Scanning Clear the [Use WSD Scanning] check box.
(5)	Select the [Use Computer Scanning] check box to use a computer scanner. (Once the [Use WSD Scanning] check box is selected, it cannot be cleared.)
(6)	Select the [Use Multicast Discovery] check box to respond to a multicast search request.
(7)	Click [OK].
(8)	Proceed to Step 5 .

Restart the machine.

Turn OFF the machine and wait for at least 10 seconds before turning it back ON.
