IMPORTANT
|
|
To set SNMPv3
You need to activate SSL features in advance.
|
|
NOTE
|
|
SNMPv3 settings
<SNMPv3 Settings> Details can be set only via Remote UI.
|
|

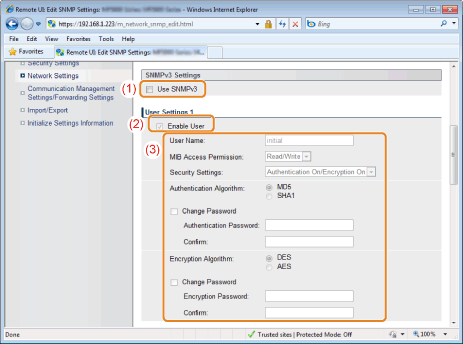

(1)
|
Select the [Use SNMPv3] check box.
|
|
(2)
|
Select the [Enable User] check box.
|
|
(3)
|
Specify the SNMPv3 protocol.
|
|
[Use SNMPv3]
|
When the check box is selected, you can use SNMPv3 protocol.
|
||||||
|
[User Name]
|
Enter a user name.
|
||||||
|
[MIB Access Permission]
|
Specify MIB access authority. When both reading and writing is permitted, a user can access this product from a computer on the network and change settings.
|
||||||
|
[Security Setting]
|
Specify securities.
|
||||||
|
[Authentication Algorithm]
|
Select an algorithm to be used for authentication.
To change the password, select the [Change Password] check box and enter 6 to 16 alphanumeric characters in [Authentication Password] and [Confirm].
|
||||||
|
[Encryption Algorithm]
|
Select an algorithm to be used for encryption.
To change the password, select the [Change Password] check box and enter 6 to 16 alphanumeric characters in [Encryption Password] and [Confirm].
|
] (Menu).
] or [
] and press [OK].
] (Log In/Out).
] or [] and press [OK].
] or [] and press [OK].
] or [] and press [OK].
|
<Off>
|
SNMPv3 protocol is not available.
|
|
<On>
|
SNMPv3 protocol is available.
|
] (Menu) to close the menu screen.| © CANON Inc. 2012 All Rights Reserved. | Disclaimer CopyrightTrademarksOffice LocationsUSRM2-1719 (00) |
|---|
