NOTE
|
|
When <Wireless LAN> is selected in <Select Wired/Wireless LAN>:
The setting in this section is disabled.
A number of MAC addresses that can be specified
Up to 32 MAC addresses can be specified.
|
|

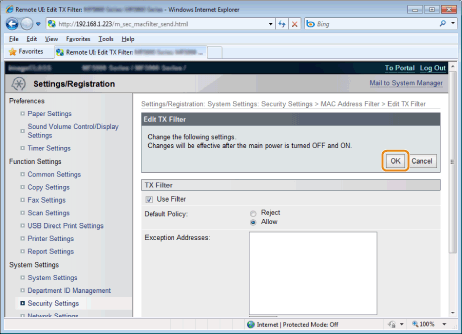

(1)
|
Select the [Use Filter] check box.
|
|
(2)
|
Select the [Reject] or [Allow] check box.
|
|
[Reject]
|
Allow accessing only from computers of which addresses specified in [Exception Addresses].
|
|
[Allow]
|
Reject accessing from computers of which addresses specified in [Exception Addresses].
|
|
IMPORTANT
|
||
|
When the [Use Filter] check box is selected:
You cannot access from the following MAC addresses. Make sure to enter the correct MAC address.
MAC addresses not specified for [Exception Addresses] in [Reject]
MAC addresses specified for [Exception Addresses] in [Allow]
|
|
(1)
|
Enter the MAC address.
|
||
|
(2)
|
Click [Add].
|
|
NOTE
|
||||
|
To delete registered MAC addresses
 |
|
IMPORTANT
|
|
When the setup is complete
Restart the machine to take effect the settings.
|
] (Menu).
] or [
] and press [OK].
] (Log In/Out).
] or [] and press [OK].
] or [] and press [OK].
] or [] and press [OK].
] or [] and press [OK].
|
<Off>
|
MAC address filter is not available.
|
|
<On>
|
MAC address filter is available.
|
] (Menu) to close the menu screen.| © CANON Inc. 2012 All Rights Reserved. | Disclaimer CopyrightTrademarksOffice LocationsUSRM2-1719 (00) |
|---|
