Loading Paper into a Paper Drawer

If the selected paper runs out, or the selected paper drawer runs out of paper during printing, a screen prompting you to load paper appears on the touch panel display.

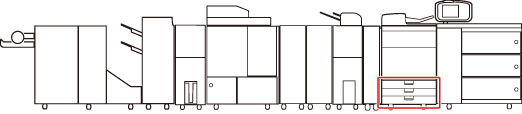

The location of the paper drawers is indicated in the following illustration.

Follow the procedure below to load paper into the paper drawers.

CAUTION
When handling paper, take care not to cut your hands on the edges of the paper.

IMPORTANT
A screen prompting you to load paper also appears if the selected paper drawer is not fully inserted into the machine. Make sure that the paper drawer is properly in place. Do not load the following types of paper into the paper drawer. Doing so may cause a paper jam. Severely curled or wrinkled paper Thin straw paper Heavy paper (more than 80 lb cover (220 g/m2)) Paper which has been printed on using a thermal transfer printer The reverse side of paper which has been printed on using a thermal transfer printer Coated paper Labels Make sure that you fan the sheets of paper well before placing them. Thin paper, recycled paper, pre-punched paper, heavy paper, transparencies, clear film, and tab papers should be fanned particularly well before loading it. Never place paper or any other items in the empty part of the drawer next to the paper stack. Doing so may cause paper jams. When you are printing in the Staple mode, do not remove the output sheets that are waiting to be stapled. (Printing and stapling resume after you clear the paper jam.)

IMPORTANT

A screen prompting you to load paper also appears if the selected paper drawer is not fully inserted into the machine. Make sure that the paper drawer is properly in place.

Do not load the following types of paper into the paper drawer. Doing so may cause a paper jam.

Severely curled or wrinkled paper

Thin straw paper

Heavy paper (more than 80 lb cover (220 g/m2))

Paper which has been printed on using a thermal transfer printer

The reverse side of paper which has been printed on using a thermal transfer printer

Coated paper

Labels

Make sure that you fan the sheets of paper well before placing them. Thin paper, recycled paper, pre-punched paper, heavy paper, transparencies, clear film, and tab papers should be fanned particularly well before loading it.

Never place paper or any other items in the empty part of the drawer next to the paper stack. Doing so may cause paper jams.

When you are printing in the Staple mode, do not remove the output sheets that are waiting to be stapled. (Printing and stapling resume after you clear the paper jam.)

NOTE
Register the size and type of the loaded paper in [Paper Settings] in [Preferences] (Settings/Registration). You can use custom paper sizes. (See "Registering/Editing/Deleting Custom Paper Sizes.") You can name, register, and edit custom paper types. (See "Registering Custom Paper Types.") For information on paper that can be loaded, see "Available Paper Stock." You can load Kakugata 2 and ISO-5 envelopes into the paper drawer without using the Envelope Feeder Attachment-F1. For information on how to load envelopes other than Kakugata 2 and ISO-C5, see "Loading Envelopes into the Paper Drawer Using the Envelope Feeder Attachment-F1." If a message prompting you to load paper appears during printing, the remaining prints are automatically made after you load the correct paper. If you select a different paper source, the remaining prints are made after you press [OK]. Press [Cancel] to cancel printing.

NOTE

You can use custom paper sizes. (See "Registering/Editing/Deleting Custom Paper Sizes.")

You can name, register, and edit custom paper types. (See "Registering Custom Paper Types.")

For information on paper that can be loaded, see "Available Paper Stock."

You can load Kakugata 2 and ISO-5 envelopes into the paper drawer without using the Envelope Feeder Attachment-F1. For information on how to load envelopes other than Kakugata 2 and ISO-C5, see "Loading Envelopes into the Paper Drawer Using the Envelope Feeder Attachment-F1."

If a message prompting you to load paper appears during printing, the remaining prints are automatically made after you load the correct paper. If you select a different paper source, the remaining prints are made after you press [OK].

Press [Cancel] to cancel printing.

Open the paper drawer.

Grip the handle, and pull out the paper drawer until it stops.

Prepare the paper to load.

Open the packaging for the paper, and remove the paper stack.

NOTE
For high-quality printouts, use paper recommended by Canon. Before loading paper, always fan the sheets several times, and align the edges to facilitate feeding.

Load the paper stack into the paper drawer.

	1. Make sure that the paper size setting of the paper drawer matches the size of the paper to load in the paper drawer.
	2. Load the paper stack against the right wall of the paper drawer.
	3. Gently push the paper drawer back into the machine until it clicks into place in the closed position.

CAUTION
When returning the paper drawer to its original position, be careful not to get your fingers caught, as this may result in personal injury.

IMPORTANT
In the following situations, adjust the position of the paper drawer guides to match the paper size being loaded. (See "Adjusting a Paper Drawer to Hold a Different Paper Size.") When you load paper into the paper drawer for the first time. When you load paper and the edges of the paper stack may become curled in the paper drawer or there are gaps between the edge of paper and the paper drawer guides, because the size of paper being loaded does not match the paper size that the paper drawer guides currently set for. Paper which is curled must be straightened out before loading it into the paper deck unit. You will not be able to make copies or print if you load paper that exceeds the loading limit mark (), or if the paper drawer is not completely pushed into the machine. Make sure that the height of the paper stack does not exceed the loading limit mark (). When loading envelopes into the paper drawer, refer to the loading limit mark for Kakugata 2 () or ISO-C5 (). Always check that the paper drawers are in place.

IMPORTANT

In the following situations, adjust the position of the paper drawer guides to match the paper size being loaded. (See "Adjusting a Paper Drawer to Hold a Different Paper Size.")

When you load paper into the paper drawer for the first time.

When you load paper and the edges of the paper stack may become curled in the paper drawer or there are gaps between the edge of paper and the paper drawer guides, because the size of paper being loaded does not match the paper size that the paper drawer guides currently set for.

Paper which is curled must be straightened out before loading it into the paper deck unit.

You will not be able to make copies or print if you load paper that exceeds the loading limit mark (

), or if the paper drawer is not completely pushed into the machine.

Make sure that the height of the paper stack does not exceed the loading limit mark (

When loading envelopes into the paper drawer, refer to the loading limit mark for Kakugata 2 (

) or ISO-C5 (

Always check that the paper drawers are in place.

NOTE
The number of sheets that can be loaded in the paper drawer is 550 sheets (20 lb bond (80 g/m2)). If there are instructions on the paper package about which side of the paper to load, follow those instructions. When the paper is loaded into the paper drawer, the side facing down is the one printed on. If problems, such as poor print quality or paper jams occur, try turning the paper stack over and reloading it. For more information on the print direction of preprinted paper (paper which has logos or patterns already printed on it), see "Relationship Between the Original Orientation and Paper Orientation." Rewrap any remaining paper in its original package, and store it in a dry place, away from direct sunlight. If paper runs out and printing is stopped, load a new paper stack. Printing restarts after the new paper stack is loaded. If you print on the paper which has absorbed moisture, steam may come out from the output area of the machine. This is because the moist on the paper evaporates when the high temperature is applied when a toner is fixed to the paper. It is not a malfunction. (This especially happens in low room temperature.)

NOTE

The number of sheets that can be loaded in the paper drawer is 550 sheets (20 lb bond (80 g/m2)).

If there are instructions on the paper package about which side of the paper to load, follow those instructions.

When the paper is loaded into the paper drawer, the side facing down is the one printed on.

If problems, such as poor print quality or paper jams occur, try turning the paper stack over and reloading it.

For more information on the print direction of preprinted paper (paper which has logos or patterns already printed on it), see "Relationship Between the Original Orientation and Paper Orientation."

Rewrap any remaining paper in its original package, and store it in a dry place, away from direct sunlight.

If paper runs out and printing is stopped, load a new paper stack. Printing restarts after the new paper stack is loaded.

If you print on the paper which has absorbed moisture, steam may come out from the output area of the machine. This is because the moist on the paper evaporates when the high temperature is applied when a toner is fixed to the paper. It is not a malfunction. (This especially happens in low room temperature.)
