Staple Finisher-X1/Booklet Finisher-X1/Puncher Unit-BF1/Inner Booklet Trimmer-A1

» Appendix » Options » Optional Equipment » Staple Finisher-X1/Booklet Finisher-X1/Puncher Unit-BF1/Inner Booklet Trimmer-A1

0WR6-0UE

Install "Staple Finisher-X1" or "Booklet Finisher-X1" to use the following finish functions.

Collate
The printouts are collated into sets arranged in page order of the document.
　
Group
All printouts of the same original page are grouped together into sets.
　
Offset
Each printout group is shifted in alternating layers.
　
Staple + Collate
The printouts are collated into sets arranged in page order and stapled (Corner/Double). You can fold and staple the printouts by using "Booklet Finisher-X1."
　
Staple + Group
All printouts of the same original page are grouped together into sets and stapled (Corner/Double).
　
Saddle Fold (Booklet Finisher-X1 only)
The printouts are folded into half its size.

TIPS
If you install the "Puncher Unit-BF1" in the "Staple Finisher-X1" or "Booklet Finisher-X1," you can punch holes in your printouts. If you install the "Inner Booklet Trimmer-A1" in the "Booklet Finisher-X1," you can cut the bound output paper to align the edge of the paper.

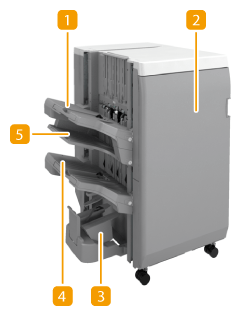

External View


Booklet Finisher-X1		Staple Finisher-X1

Output Tray A

The prints are output to this tray. You can specify functions for which the tray is used by configuring <Output Tray Settings>. <Paper Output Settings>

Front cover

Open to remove jammed paper, clear a staple jam in the stapler unit and saddle stitcher unit, or replace the staple cartridge. If the "Puncher Unit-BF1" is installed, open to discard punch waste.

Booklet tray (Booklet Finisher-X1 only)

The printouts that are saddle stitched are output to this tray.

Output Tray C

The prints are output to this tray. You can specify functions for which the tray is used by configuring <Output Tray Settings>. <Paper Output Settings>

Output Tray B

The prints are output to this tray. You can specify functions for which the tray is used by configuring <Output Tray Settings>. <Paper Output Settings>

IMPORTANT
If the booklet tray guide is not properly adjusted to the paper size, it may cause a paper jam.

Internal View


Booklet Finisher-X1		Staple Finisher-X1

Staple waste tray

Pull out to discard stapler waste. Discarding Staple Waste (Staple Finisher-X1/Booklet Finisher-X1)

Punch waste tray (Puncher Unit-BF1)

Pull out to discard punch waste. Discarding Punch Waste (Staple Finisher-X1/Booklet Finisher-X1)

Saddle stitcher unit (Booklet Finisher-X1 only)

Pull out to remove jammed paper or clear a staple jam in the saddle stitcher unit, or to replace the staple cartridge.

Trim waste tray (Inner Booklet Trimmer-A1, Booklet Finisher-X1 only)

Pull out to discard trim waste (cutting waste). Discarding Trim Waste (Inner Booklet Trimmer-A1)

NOTE
For information on the paper sizes that can be used for Staple, Saddle Stitch, Hole Punch, and Saddle Fold, see Specifications. To replace the staple cartridge of the stapler unit or saddle stitcher unit, see Replacing the Staple Cartridge. For how to clear a paper jam or a staple jam, see Clearing Paper Jams Clearing Staple Jams. Collate and group If you select <Offset> in combination with the collate or group function, each printout group is shifted. The output trays move downward as the output paper stacks accumulate. Once an output tray has reached its stacking limit, subsequent prints are automatically delivered to the next available tray. If all of the available trays have reached their stacking limits, printing stops. Remove all of the output paper from the trays to resume printing. Staplers When you are using the Staple mode, do not remove the stack of paper from the output tray during the job. Remove the stack of paper when the job has been completed. If the <Load staples into the stapler unit.> message appears, almost all of the staples have been used. To proceed, replace the staple cartridge. If a tray reaches the lowest position limit, printing stops temporarily. Remove all of the output paper from the tray to resume printing. Saddle stitch The accuracy of folds may vary depending on the paper type and the number of sheets.

NOTE

For information on the paper sizes that can be used for Staple, Saddle Stitch, Hole Punch, and Saddle Fold, see Specifications.

To replace the staple cartridge of the stapler unit or saddle stitcher unit, see Replacing the Staple Cartridge.

For how to clear a paper jam or a staple jam, see Clearing Paper Jams Clearing Staple Jams.

Collate and group

If you select <Offset> in combination with the collate or group function, each printout group is shifted.

The output trays move downward as the output paper stacks accumulate. Once an output tray has reached its stacking limit, subsequent prints are automatically delivered to the next available tray. If all of the available trays have reached their stacking limits, printing stops. Remove all of the output paper from the trays to resume printing.

Staplers

When you are using the Staple mode, do not remove the stack of paper from the output tray during the job. Remove the stack of paper when the job has been completed.

If the <Load staples into the stapler unit.> message appears, almost all of the staples have been used. To proceed, replace the staple cartridge.

If a tray reaches the lowest position limit, printing stops temporarily. Remove all of the output paper from the tray to resume printing.

Saddle stitch

The accuracy of folds may vary depending on the paper type and the number of sheets.
