Paper Jams in the Booklet Finisher-X1
Check the location of the paper jam on the touch panel display, and remove it. The Booklet Finisher-X1 is optional. Optional Equipment
Inside the Front Cover
Follow the procedure described in this section to clear the paper jam. Paper jam locations are indicated by numbers such as F-A1 or F-B1, which are shown in the illustration below.
1
Open the front cover of the finisher.
2

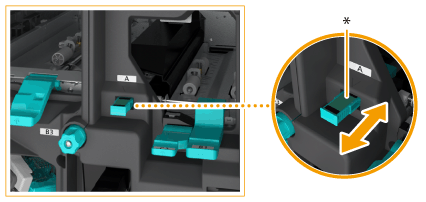

If the Puncher Unit-BF1 is attached, slide the guide (F-A1) to align it with the mark.
|
* Slide the guide in or out to align the nearest
 with the mark ( ). |
3
Open the guide (F-B1).
4
Remove the jammed paper.
 |
 |
Remove the jammed paper.
|
 |
Close the guide (F-B1).
|
5
Open the guide (F-B2).
6
Turn the dial (F-B3) in the direction of the arrow.
7
Remove the jammed paper from the guide (F-B2).
8
Remove the jammed paper from the guide (F-B4).
 |
|
Open the guide (F-B4).
|
|
|
Remove the jammed paper.
|
|
 |
Close the guide (F-B4).
|
9
Close the guide (F-B2).
10
Close the front cover of the finisher.
11
Follow the instructions on the touch panel display.
Resume the procedure that was interrupted.
Saddle Stitcher Unit of the Booklet Finisher-X1
Follow the procedure described in this section to clear the paper jam. Paper jam locations are indicated by numbers such as F-C1 or F-C2, which are shown in the illustration below.
* Delivery guide
1
Open the front cover of the finisher.
2
Open the guide (F-C1).
3
Open the guide (F-C2).
4
Remove the jammed paper.
 |
|
Turn the knob (F-C3) in the direction of the arrow.
Jammed paper is fed to the guide (F-C2).
|
|
|
Remove the jammed paper.
|
|
|
|
Close the guide (F-C2).
|
5
Close the guide (F-C1).
6
While pushing in the dial (F-C4), turn it in the direction of the arrow until the lamp turns off.
This procedure is not required if the lamp is off.
* Lamp
7
Remove the output paper from the booklet tray.
8
Pull out the saddle stitcher unit (F-C5).
9
Remove the jammed paper from the right cover of the saddle stitcher unit (F-C6).
 |
|
Open the right cover (F-C6).
|
|
|
Remove the jammed paper.
|
|
|
|
Close the right cover (F-C6).
|
10
Open the delivery guide, and remove the jammed paper.
This procedure is not required if the Inner Booklet Trimmer-A1 is attached.
 |
|
Open the delivery guide, and remove the jammed paper.
|
|
|
Close the delivery guide.
|
11
Push the saddle stitcher unit (F-C5), and close the front cover of the finisher.
12
Follow the instructions on the touch panel display.
Resume the procedure that was interrupted.
