0WR7-0A0
You can configure the user login methods, authentication devices, and other authentication functions based on your system environment and needs. You can also specify how the login screen is displayed.
Specify the user login methods (Login Method) and authentication devices (Authentication Device). Note that the authentication devices need to be set up before configuring the settings below.
1
Start the Remote UI. Starting the Remote UI
2
Click [Settings/Registration] on the portal page. Remote UI Screen
3
Click [User Management]
[Authentication Management].
[Authentication Management].4
Click [Basic Settings] [Edit].
[Edit].5
Select the check box for [Use the user authentication function] and specify the required settings.
Select the login methods that you want to use, and specify detailed settings such as for the authentication devices.

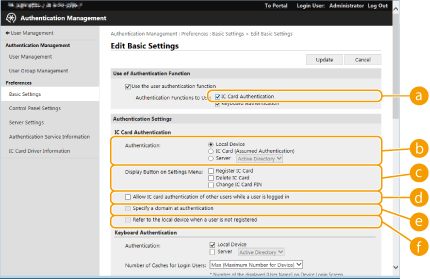

Using IC card authentication
Configure the settings below when using IC card authentication.
[Authentication Functions to Use]Select the check box for [IC Card Authentication].
[Authentication]Select the user authentication device.
When [IC Card (Assumed Authentication)] is selected, login is performed using only the information registered on the IC card, and logged-in users can operate the machine with general user privileges.
When using an external authentication server, select [Server] and specify the type of server.
[Display Button on Settings Menu]Select the check boxes for the buttons to add to the menu that is displayed when pressing
on the top right corner of the login screen.
on the top right corner of the login screen.
[Allow IC card authentication of other users while a user is logged in]Select the check box to allow a user to log in to the machine with an IC card, even if another user is already logged in. If this function is enabled, the previously logged-in user is automatically logged out when the IC card is touched to the reader. This is not available when the machine is configured to perform authentication for separate functions.
[Specify a domain at authentication]*Select the check box to allow users to specify the domain of the login destination on the IC card authentication login screen.
[Refer to the local device when a user is not registered]*Select the check box to allow users to log in using the local device user information, even if they are not registered on the authentication server.
* This setting is only available when using an external authentication server.

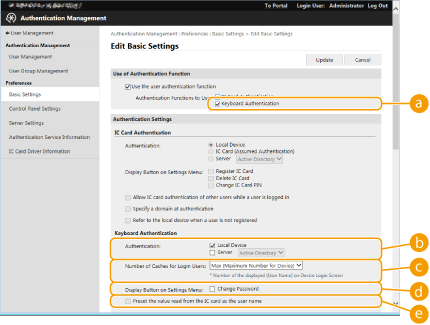

Using keyboard authenticationConfigure the settings below when using keyboard authentication.
[Authentication Functions to Use]Select the check box for [Keyboard Authentication].
[Authentication]Select the user authentication device.
Select the check box for [Local Device] if you are using the database inside this machine to manage user information.
When using an external authentication server, select [Server] and specify the type of server.
[Number of Caches for Login Users]The names of users who previously logged in can be displayed in a drop-down list on the login screen on the machine. Select [0] to hide the login history, and select [1] to display only the name of the user who logged in most recently.
[Display Button on Settings Menu]Select the check box to add the <Change Password> button to the menu that is displayed when pressing on the top right corner of the login screen.
on the top right corner of the login screen.[Preset the value read from the IC card as the user name]Select the check box to automatically enter the card ID in [User Name] on the login screen when IC card authentication is available.

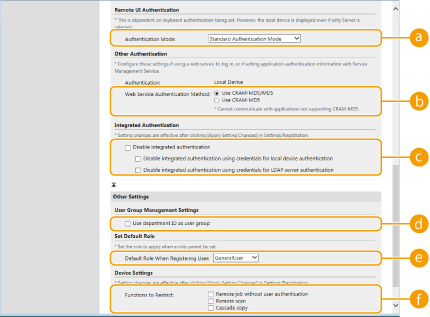

Configuring detailed settings for authentication functionsYou can configure detailed settings for the personal authentication functions.
[Authentication Mode]Select the authentication mode to use for Remote UI login. When [Guest Authentication Mode] is selected, unregistered users can also log in by clicking [Log In (Guest)]. Select [Administrator Authentication Mode] to only allow users with Administrator privileges to log in.
[Web Service Authentication Method]Select the local device authentication method to use for communications with Web service applications.
[Disable integrated authentication]Integrated authentication is a function that eliminates the need for a logged-in user to perform authentication when using other functions that require authentication. Users simply log in one time, which improves convenience but also increases the risk of unauthorized access. Disabling integrated authentication and requiring a password for separate functions is an effective measure to prevent unauthorized access. Select the check box to disable the integrated authentication function.
To disable the integrated authentication function only for logged-in users who are registered in the local device, select the check box for [Disable integrated authentication using credentials for local device authentication].
To disable the integrated authentication function only for logged-in users who are registered in the LDAP server, select the check box for [Disable integrated authentication using credentials for LDAP server authentication].
NOTE:
When integrated authentication is disabled, a separate user name and password must be registered in order to access the folders and boxes listed below.
Personal folder
LDAP server
Shared folder/FTP server/WebDAV server
Advanced Box
[Use department ID as user group]Select the check box to use Department IDs as the user groups (Registering User Information in the Local Device) to which users are registered.
[Default Role When Registering User]Select the role to apply to users in situations such as when no privileges are set.
[Functions to Restrict]Select the check boxes for functions that cannot be used when personal authentication management is enabled.
6
Click [Update].
7
Restart the machine. Restarting the Machine
|
NOTE
|
|
The authentication method selected for [Web Service Authentication Method] is also used for personal authentication during the device information distribution. Performing User Authentication when Distributing Device Information
|
You can specify when to display the login screen by selecting either “when you start using the machine” or “after a function button is pressed.” If “after a function button is pressed” is selected, you can specify the functions that require user login. Functions that are not specified are available to unregistered users.
1
Start the Remote UI. Starting the Remote UI
2
Click [Settings/Registration] on the portal page.Remote UI Screen
3
Click [User Management] [Authentication Management].
[Authentication Management].4
Click [Control Panel Settings] [Edit...].
[Edit...].5

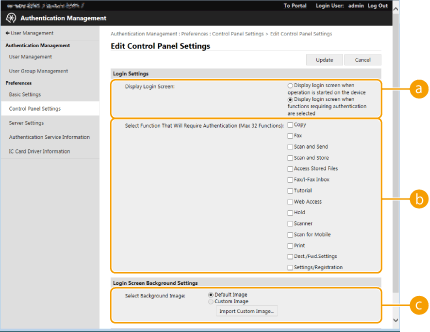

Configure the settings as necessary.
[Display Login Screen]Select when the login screen is displayed. If you want to select whether or not to display a login screen for each function, select [Display login screen when functions requiring authentication are selected].
[Select Function That Will Require Authentication]If [Display login screen when functions requiring authentication are selected] is selected in , select the check box for the functions that display a login screen.
, select the check box for the functions that display a login screen.[Select Background Image]You can specify a background image for the login screen.
6
Click [Update].
