Inside the Insertion Unit
08JK-0LU
Check the location of the paper jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed paper.
1.

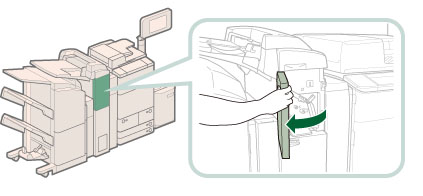

Open the front cover of the Document Insertion/Folding Unit-G1 or Document Insertion Unit-J1.
2.

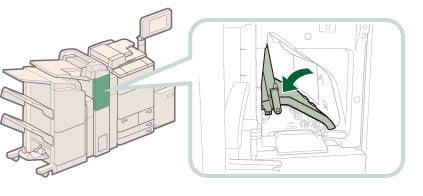

Open the upper delivery guide.
3.
Remove any jammed paper.
4.
Close the upper delivery guide.
CAUTION
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
5.
Open the lower delivery guide.
6.

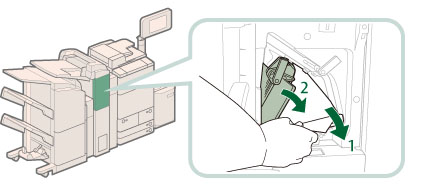

Remove any jammed paper from the lower delivery guide.
1. Remove any jammed paper.
2. Close the lower delivery guide.
CAUTION
When closing the guide, be careful not to get your fingers caught, as this may result in personal injury.
7.
Close the front cover.
CAUTION
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
8.
Follow the instructions on the screen.
NOTE
The screen indicating the directions on how to clear the paper jam is displayed repeatedly until the paper jam is cleared.
