Paper Folding Unit-F1
If the Paper Folding Unit-F1 is attached to the Finisher-AM1/Saddle Finisher-AM2, the paper can be folded in 5 different ways (Z-Fold, Half Fold, C-Fold, Accordion Z-Fold, Double Parallel Fold).
Parts and Their Functions
1.
Front Cover
Open this cover to remove jammed paper. (See "Paper Folding Unit-F1 (Optional).")
2.
Folding Unit
Open this cover to remove jammed paper. (See "Paper Folding Unit-F1 (Optional).")
3.
Exit Slot
The folded paper is output to this tray.
Folding Modes
Z-Fold Mode
Paper Folding Unit-F1 folds 11" x 17", LTRR, or LGL paper into its half size, respectively. When multiple copies of differently sized originals must be made, the Z-Fold mode enables you to easily handle paper with the same leading edge length but different width.
Paper folded in a Z-fold is output to the tray specified for the Finisher-AM1/Saddle Finisher-AM2.
*1 Leading Edge Length
*2 Feeding Direction
IMPORTANT
If LTRR is Z-folded, please note that the Auto Orientation Setting differs depending on the orientation of the original.
Orientation of the original
Auto Orientation Setting
Orientation of the output
LTRR
On/Off
LTRR
LTR
On only*1
LTRR*2
*1 If Auto Orientation is set to 'Off', part of the image may cut off.
*2 If Auto Orientation is set to 'On', LTRR is selected automatically. However, if the Merge Job Blocks is set, LTRR is not selected automatically.
If 11" x 17" paper and LTR paper are loaded together, only 11" x 17" paper is Z-folded. Even if you set the original in LTR orientation and set Auto Orientation Setting to 'On', LTRR paper is not selected if you set [Different Size Originals].
NOTE
The Z-folded areas are as shown in the illustration below.

Platen Glass


Feeder


If paper that has been Z-folded is included in the output, the sheets may not be aligned when output.

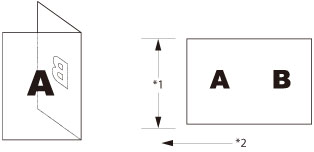

Half Fold Mode
Each sheet of LTRR papers is half folded.
Paper folded in a half fold is output to the tray specified for the Finisher-AM1/Saddle Finisher-AM2.
*1 Leading Edge Length
*2 Feeding Direction
NOTE
The half folded areas are as shown in the illustration below.

Platen Glass
Feeder
C-Fold Mode
LTRR prints are C-folded to make them into a more convenient size for inserting them into envelopes.
Paper folded in a C-fold is output to the Exit Slot of the Paper Folding Unit-F1.
*1 Leading Edge Length
*2 Feeding Direction
NOTE
The C-folded areas are as shown in the illustration below.

Platen Glass
Feeder

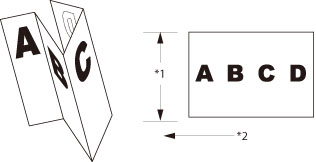

Accordion Z-Fold Mode
Each sheet of LTRR paper is folded in an accordion Z-fold.
Paper folded in an accordion Z-fold is output to the Exit Slot of the Paper Folding Unit-F1.
*1 Leading Edge Length
*2 Feeding Direction
NOTE
The accordion Z-folded areas are as shown in the illustration below.

Platen Glass
Feeder
Double Parallel Fold Mode
Each sheet of LTRR or LGL paper is folded in a double parallel fold.
Paper folded in a double parallel fold is output to the Exit Slot of the Paper Folding Unit-F1.
*1 Leading Edge Length
*2 Feeding Direction
NOTE
The double parallel folded areas are as shown in the illustration below.
Platen Glass
Feeder
The paper outputs to the following Exit Slot, depending on the folding modes.
Z-fold Mode/Half Fold Mode: Finisher-AM1/Saddle Finisher-AM2
C-fold Mode/Accordion Z-Fold Mode/Double Parallel Fold Mode: Paper Folding Unit-F1
Staple Mode with the Z-fold Mode
When the Paper Folding Unit-F1 is attached, paper sizes, the maximum number of sheets, and paper weight that can be Z-folded and stapled are as follows:
11" x 17", LGL:10 sheets (16 lb bond to 28 lb bond (60 g/m2 to 105 g/m2))
When the Paper Folding Unit-F1 is attached and using different size paper, the maximum number of sheets that can be Z-folded and stapled is calculated with the following formula.
X + 2Y + 10Z ≤ 100
X = the number of LTR or STMT paper which is not Z-folded
Y = the number of 11" x 17" or LGL paper which is not Z-folded
Z = the number of Z-folded paper
Example:
50 sheets of LTR paper + 5 sheets of 11" x 17" paper (one of the 11" x 17" paper is Z-folded)
50 + (2 x 4) + (10 x 1)
= 50 + 8 + 10
= 68
→68 ≤100
In this case, the paper can be stapled.
50 sheets of LTR paper + 7 sheets of 11" x 17" paper (all of the 11" x 17" paper are Z-folded)
50 + (2 x 0) + (10 x 7)
= 50 + 0 + 70
= 120
→120 ≥ 100
In this case, the output paper is not stapled.
