Connecting to a Wired LAN

» Setting Up » Setting up the Network Environment » Connecting to a Wired LAN

0WR7-009

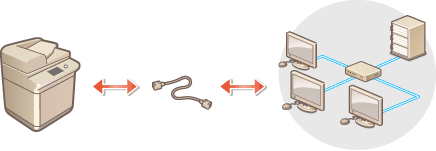

Connect the machine to a computer via a router using a LAN cable.

NOTE
A router and LAN cable are not included with the machine, so please prepare them separately. The machine supports 1000BASE-T/100BASE-TX/10BASE-T Ethernet. To make a connection using 100BASE-TX/10BASE-T, use a category 5 twisted pair cable. It is recommended to use an enhanced category 5 twisted pair cable to make a connection using 1000BASE-T. If devices supporting 1000BASE-T, 100BASE-TX and 10BASE-T are used together, a device (such as a switching hub) supporting all of the Ethernet types you use is necessary. For more information, contact a person in charge of service.

NOTE

A router and LAN cable are not included with the machine, so please prepare them separately.

The machine supports 1000BASE-T/100BASE-TX/10BASE-T Ethernet.

To make a connection using 100BASE-TX/10BASE-T, use a category 5 twisted pair cable. It is recommended to use an enhanced category 5 twisted pair cable to make a connection using 1000BASE-T.

If devices supporting 1000BASE-T, 100BASE-TX and 10BASE-T are used together, a device (such as a switching hub) supporting all of the Ethernet types you use is necessary. For more information, contact a person in charge of service.

Connect the machine to a router using a LAN cable.

Push the connector in until it clicks into place.
