Replacing the Toner Cartridge
07K4-0WF
1
Open the front cover while holding down the open button.
2
Remove the toner cartridge.
3
Take out the new toner cartridge from the protective bag.
You can open the protective bag with your hands from the notch.
Keep the protective bag. You will need them when you remove the toner cartridge for printer maintenance or other purposes.
4
Gently shake the toner cartridge five or six times to evenly distribute the toner inside the cartridge.
5
Place the toner cartridge on a flat surface.
6
Fold the tab, and the pull out the sealing tapes (approximately 20" (50 cm)).
IMPORTANT
Precautions when pulling out the sealing tape
Do not pull the sealing tape at an angle or up and down. If the tape breaks, it may not be pulled out completely.
If the sealing tape is still hanging outside the toner cartridge, pull it out completely. If the tape remains inside the toner cartridge, it may cause poor print quality. If you are using the Fax, please note that you can only print the received data once, because the received data is deleted once it is printed.
Dispose of the sealing tape according to local regulations.
7

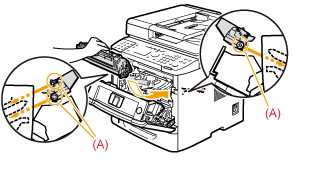

Insert the toner cartridge.
Fit (A) on both sides of the toner cartridge into the guides located on both sides of the machine and slide the toner cartridge into the machine until the toner cartridge comes to rest and is held against the back of the machine.
8
Close the front cover.
 If you cannot close the front cover
Make sure that the toner cartridge is installed correctly. Do not try to forcefully close the toner cover, as this may damage the machine.
