Part Name
Front View
|
NOTE
|
|
About the film attached to the control panel
Remove it before using the panel.
|
|
(1)
|
Output tray
|
 |
(4)
|
Multi-purpose Tray
|
|
(7)
|
Auxiliary Tray
|
|
(10)
|
Open Button
|
|
|
(2)
|
USB memory connector
|
|
(5)
|
Duplex Print Transport Guide
|
|
(8)
|
Control Panel
|
|
(11)
|
Lift Handles
|
|
|
(3)
|
Front Cover
|
|
(6)
|
Paper Drawer
|
|
(9)
|
Ventilation Slots
|
|
(12)
|
Power Switch
|
Rear View
|
(1)
|
Power Socket
|
|
(7)
|
Rating Label
|
|
(13)
|
LNK Indicator (Green)
|
|
(2)
|
Duplex Unit Cover
|
|
(8)
|
Sub-output tray
|
|
(14)
|
LAN Connector
|
|
(3)
|
Paper Size Switch Lever
|
|
(9)
|
Left Cover
|
|
(15)
|
ACT Indicator (Yellow)
|
|
(4)
|
Ventilation Slots
|
|
(10)
|
Lift Handles
|
|
(16)
|
Slot Cover
|
|
(5)
|
Back Cover
|
|
(11)
|
USB Connector (for USB devices)
|
|
||
|
(6)
|
Output Selection Cover
|
|
(12)
|
USB Connector (for connecting to computer)
|
|
Interior View
|
(1)
|
Toner Cartridge Guide
|
|
(2)
|
Transport Guide
|
Multi-purpose Tray
|
(1)
|
Paper Guides
|
|
(2)
|
Tray Extension
|
|
(3)
|
Auxiliary Tray
|

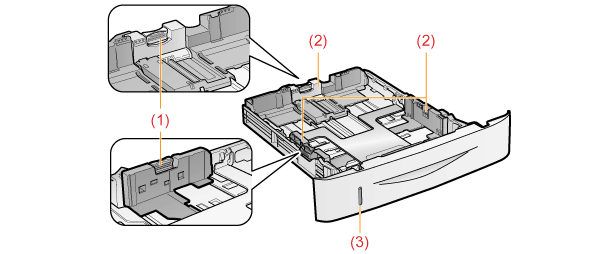

Paper Drawer
|
(1)
|
Lock Release Lever
|
|
(2)
|
Paper Guides
|
|
(3)
|
Paper Level Indicator
|

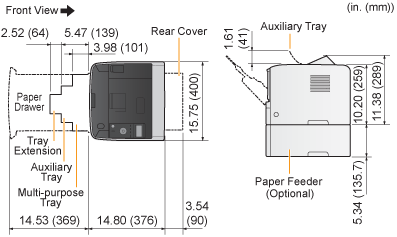

Dimensions of Each Part
Printer
Paper Feeder Unit PF-44
