Check the location of the staple jam, and follow the procedure described below, while referring to the directions that appear on the touch panel display, to remove the jammed staple.
|
IMPORTANT
|
|
Make sure to close all covers and paper drawers of the machine before clearing any staple jams.
|
|
NOTE
|
|
The Inner Finisher-E1 is an optional product.
|
1.
Remove any jammed paper protruding from the output tray.
2.
Pull out the staple case.
|
|

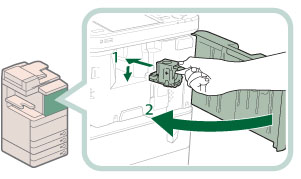

1. Open the front cover of the finisher. |
2. Pull out the staple case, holding it by the green tab. |
3.
Remove any staples jammed in the staple case.
|
|
1. Push down the tab on the staple case. |
2. Remove all of the staples that slide from the staple cartridge. |
3. Return the tab on the staple case to its original position. |
4.
Attach the staple case.
|
|
1. Gently push the staple case back into the finisher and push down firmly until it is securely in place. |
2. Close the front cover of the finisher. |
 CAUTION |
|
When closing the cover, be careful not to get your fingers caught, as this may result in personal injury.
|
|
NOTE
|
|
After the cover is closed, the stapler unit may automatically perform a "dry" stapling operation to reposition the staples.
|
